The acromioclavicular joint, or AC joint, is a joint at the top of the shoulder. It is the junction between the acromion (part of the scapula that forms the highest point of the shoulder) and the clavicle. The AC joint capsule and the ligaments surrounding the joint work together to provide stability and to keep the clavicle in contact with the acromion process of the scapula.

Movement and Function

The AC joint allows the ability to raise the arm above the head. This joint functions as a pivot point (although technically it is a gliding synovial joint), acting like a strut to help with movement of the scapula resulting in a greater degree of arm rotation.

The motions of the AC joint are described as scapular movement with respect to the clavicle, including:

  • Upward/downward rotation about an axis directed perpendicular to the scapular plane facing anteriorly and medially
  • Internal/external rotation about an approximately vertical axis
  • Anterior/posterior tipping or tilting about an axis directed laterally and somewhat anteriorly


The AC joint has a thin capsule lined with synovium, which is strengthened by capsular ligaments both inferiorly and superiorly. Without the superior and inferior capsular ligaments, the AC joint capsule would not be strong enough to maintain the integrity of the joint.

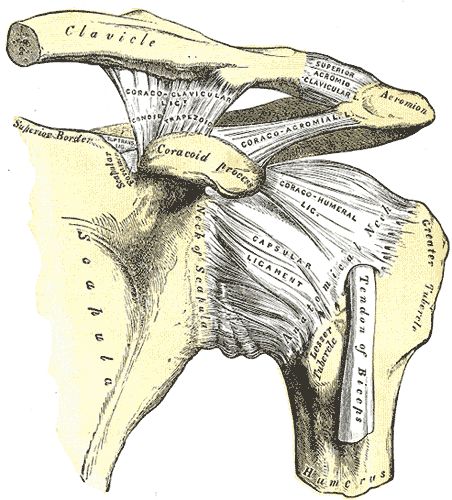

The AC joint is stabilized by three ligaments:

  • The acromioclavicular ligament, which attaches the clavicle to the acromion of the scapula and is composed of the superior acromioclavicular ligament and the inferior acromioclavicular ligament.
    • The superior acromioclavicular ligament is a quadrilateral band covering the superior part of the articulation and extending between the upper part of the lateral end of the clavicle and the adjoining part of the upper surface of the acromion. It is composed of parallel fibers, which interlace with the aponeuroses of the trapezius and deltoideus; below, it is in contact with the articular disk when this is present.
    • The inferior acromioclavicular ligament is somewhat thinner than the superior acromioclavicular ligament; it covers the under part of the articulation, and is attached to the adjoining surfaces of the two bones. It is in relation, above, in rare cases with the articular disk; below, with the tendon of the supraspinatus
  • The coracoacromial ligament, which runs from the coracoid process to the acromion. The coracoacromial ligament is a strong triangular band, extending between the coracoid process and the acromion. It is attached, by its apex, to the summit of the acromion just in front of the articular surface for the clavicle; and by its broad base to the whole length of the lateral border of the coracoid process. This ligament, together with the coracoid process and the acromion, forms a vault for the protection of the head of the humerus. It is in relation, above, with the clavicle and under surface of the deltoideus; below, with the tendon of the Supraspinatus, a bursa being interposed. Its lateral border is continuous with a dense lamina that passes beneath the deltoideus upon the tendons of the supraspinatus and infraspinatus. The coracoacromial ligament is sometimes described as consisting of two marginal bands and a thinner intervening portion, the two bands being attached respectively to the apex and the base of the coracoid process, and joining together at the acromion. When the pectoralis minor is inserted, as occasionally is the case, into the capsule of the shoulder joint instead of into the coracoid process, it passes between these two bands, and the intervening portion of the ligament is then deficient.
  • The coracoclavicular ligament, which consists of two ligaments, the conoid and the trapezoid ligaments. The coracoclavicular ligament serves to connect the clavicle with the coracoid process of the scapula. It does not properly belong to the acromioclavicular joint articulation, but is usually described with it, since it forms a most efficient means of retaining the clavicle in contact with the acromion. It consists of two fasciculi, called the trapezoid ligament and conoid ligament. These ligaments are in relation, in front, with the subclavius and deltoideus; behind, with the trapezius.


The clavicle serves as an attachment for many of the muscles that act on the upper extremity and head. These include:

  • Pectoralis major (clavicular head)
  • Sternocleidomastoid
  • Deltoid
  • Trapezius


A common injury to the AC joint is dislocation, often called AC separation or shoulder separation. This is not the same as a “shoulder dislocation,” which refers to dislocation of the glenohumeral joint. AC dislocation is particularly common in collision sports such as ice hockey, football, rugby and Aussie rules, and is also a problem for those who participate in swimming, horseback riding, mountain biking, biking, and snow skiing. The most common mechanism of injury is a fall on the tip of the shoulder, or FOOSH (falls on outstretched hand).

AC dislocations are also graded from I to VI. Grading is based on the degree of separation of the acromion from the clavicle with weight applied to the arm.

  • Grade I is slight displacement of the joint, and a badly stretched or partially torn AC ligament. It has the normal separation of <4mm.
  • Grade II is a partial dislocation of the AC joint with a complete disruption tear of the AC joint and a partial disruption of coracoclavicular ligament. The AC gap is >5mm. Grades I and II never require surgery and heal by themselves, though physical therapy may be required.
  • Grade III is complete disruption of AC and CC ligaments. On plain film, the inferior aspect of the clavicle will be above the superior aspect of the acromion. This can also be assessed with an MRI scan, which will also demonstrate disruption of the coracoclavicular ligaments (the degree depending on the severity of AC joint disruption) as well as tearing of the joint capsule. The joint will be very tender and swollen on examination. Grade III separations most often do not require surgery and shoulder function should return to normal after 16–20 weeks. However, there will be some physical deformity of the shoulder with a noticeable bump resulting from the dislocation of the clavicle.
  • Grades IV-VI are complications on a “standard” dislocation involving a displacement of the clavicle, and will almost always require surgery.
